This Marantz was a portable component system from Japan. It was available in either gold or dark gray. I believe it is identical to the Marantz X7.

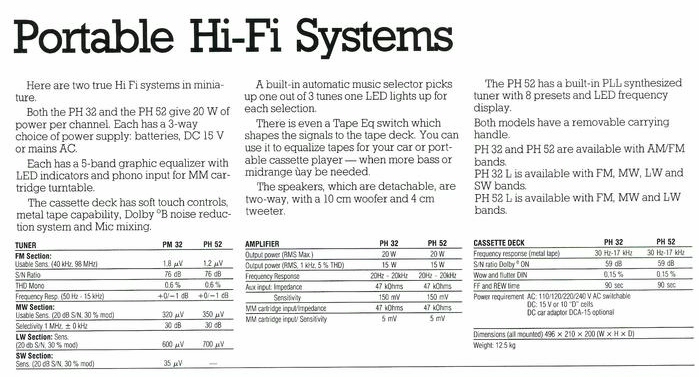

Specs:
- 496 x 210 x 200 mm
- 10cm woofers and 4cm tweeters
- Weight 12.5 kg
- 15 watts per channel RMS at 1kHz and 5% THD
- 20 watts per channel RMS Max
- Amplifier frequency response 20Hz to 20kHz.
- Tape deck frequency respnse 30Hz to 17kHz using Metal tape
- Can operate on AC or ten D-cell batteries

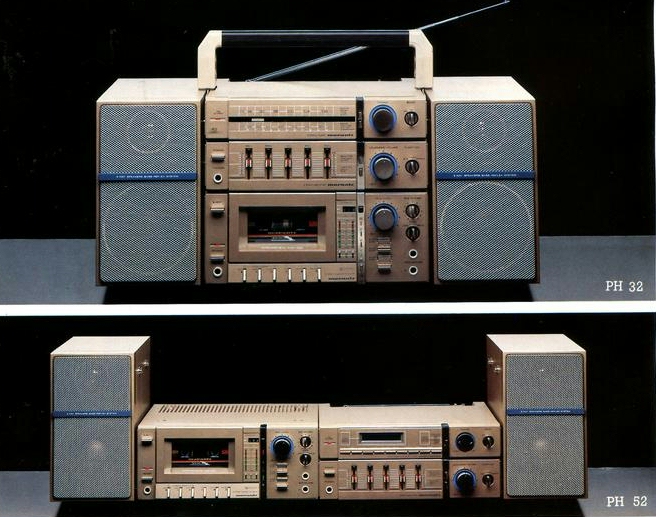

The PH-52 is shown in the second pic below. Notice it has a digital tuner. The model in the first pic has an analog tuner, so it has a different model number (Marantz PH-32). Both models have identical amplifiers, tape deck, and speakers. The only difference is the tuner.
