A 3-piece ghettoblaster from 1984 with 2 tape decks and Phono inputs

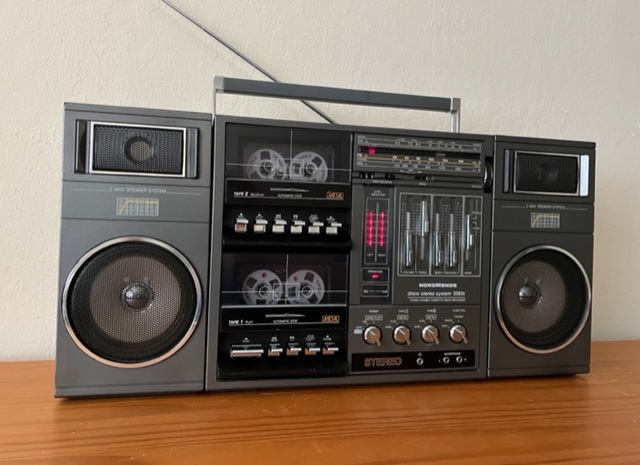

Nordmende Disco Stereo-System 5583

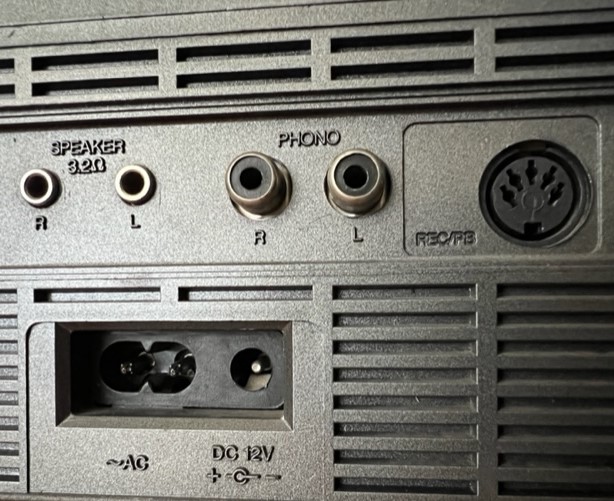

The Nordmende 5583 (model number 985.123H) is a 3-piece ghettoblaster with 2 tape decks. It also has Phono inputs that are calibrated correctly for an MP3 player (you do not need an attenuator).

Dimensions: 544mm wide, 264mm tall
Power Requirement: 220V or 12V DC
Year of Introduction: 1984
Nominal output: 2x4 watts
Peak output: 2x7 watts
Amplifier chip: Sanyo LA4500 (one)
Woofers: Foster brand, 10cm diameter, 5 watt, 3.2 ohms
Tweeters: 2cm piezo
Meters: LED, L/R (measuring input levels)
Tuner bands: FM/MW/LW, or FM/MW/SW on the 5583K (model number 985.138H)
Country of Origin: Unknown, but possibly Korea because it is very similar to the Goldstar TSW-632.
