Technics SA-C07

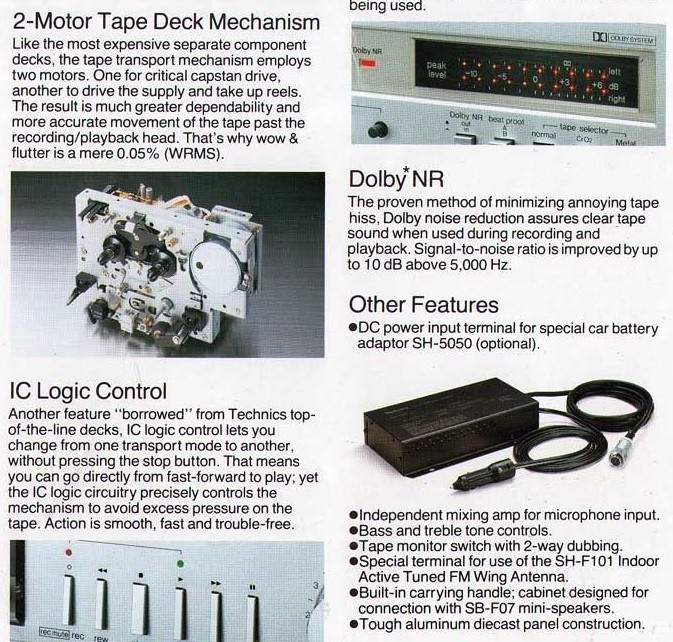

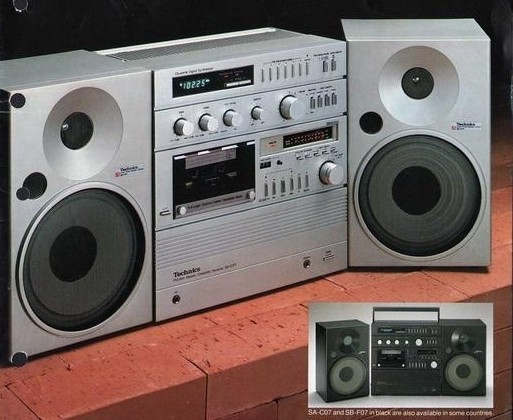

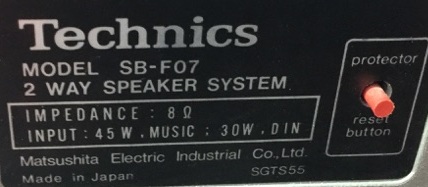

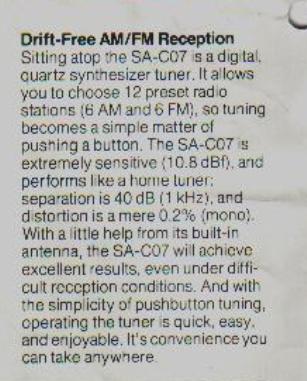

The SA-C07 was a 3-piece portable component system / boombox sold by Technics in the 1980's. It was one of the most powerful portables available at the time. 2x35 watts continuous at 1 kHz, and 2x30 watts minimum from 20 to 20,000 Hz into 8 ohms.....and that's at only 0.04% total harmonic distortion. It has a quartz sythesizer tuner with 6 station preset buttons. The tape deck has 2 motors and IC logic control. It has a claimed frequency response of 20Hz - 17kHz when using Metal tape. Wow and flutter is 0.05% WRMS. The speakers (model# SB-F07) are 2-way bass-reflex with 18cm woofers, horn tweeters, 6kHz crossovers, and thermal relay protection with reset buttons.

The system measures 32cm tall (not including the handle).

The service manual can be purchased HERE.(external link)
