DJ Tech Boombox review, specs, and photos. This model was introduced in 2015 and was sold in very limited numbers.

DJ Tech Boombox

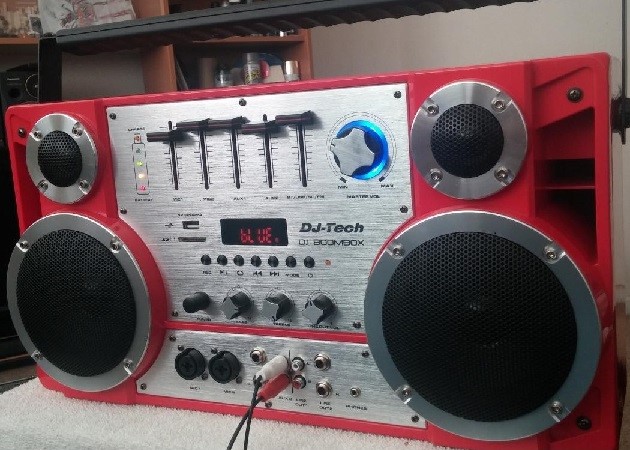

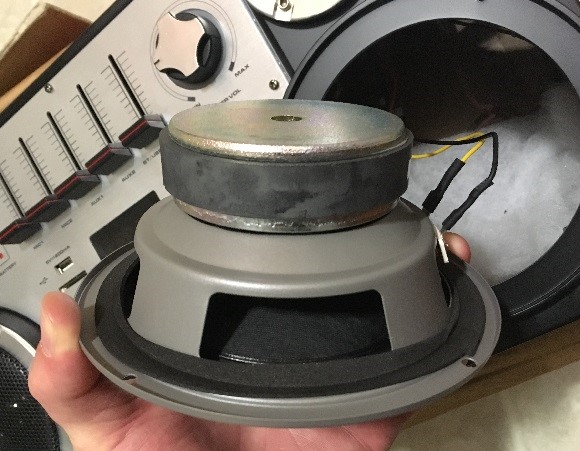

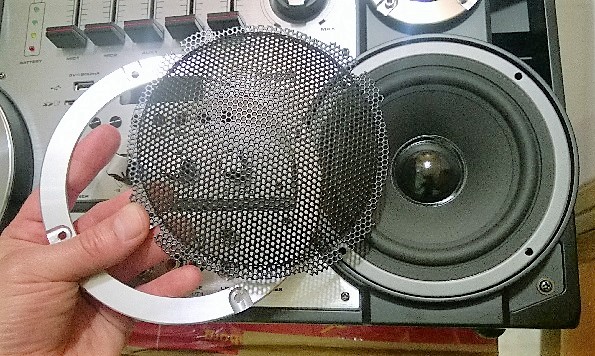

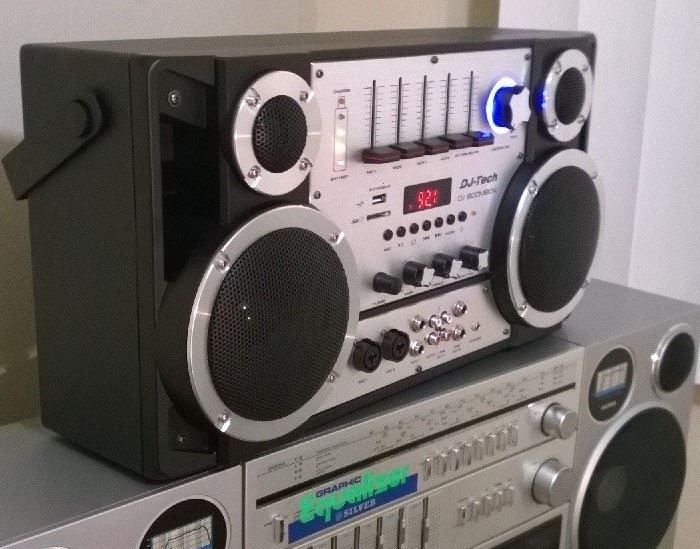

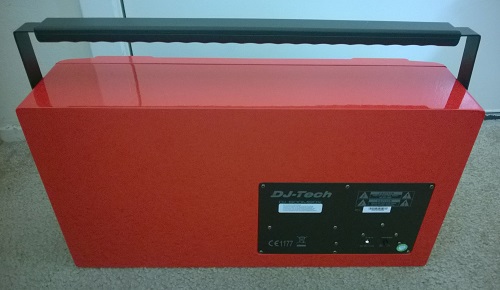

The DJ Tech Boombox came out in 2015 and was sold in limited numbers, exhausted by 2017. It combines old-school boombox styling with modern features and excellent sound quality. Weighing approximately 17.4 lbs according to my scale, it is built solid, featuring a chassis made of particle board with a colored vinyl wrap over it. The front side is plastic, with a nice metal faceplate, metal grills, and metal trim rings. It has real mixer faders that allow you to blend multiple audio sources together. The woofers have big magnets and flexible surrounds for big bass. It will smoke nearly all the vintage 1980's boomboxes.

It can play the following audio sources:

  • USB drives (with up to 32GB of MP3 or WMA files)
  • SD cards (with MP3 or WMA files)
  • Bluetooth (Ver 2.1 +EDR, A2DP, 10M range)
  • FM tuner (87.5 to 108 MHz)

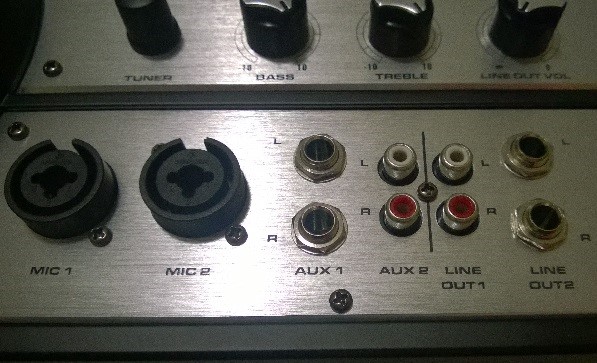

  • RCA cables
  • 1/4" unbalanced cables
  • Two XLR balanced cables (for guitars and microphones)
  • It can even record onto USB or SD card (by pressing the "REC" button).


SPECS:

  • Dimensions: 510mm wide, 260mm tall (not including the handle), and 160mm deep.
  • Weight: 7.9 kg (17.4 lbs)
  • Speaker size: 5 inch woofers, 0.75 inch tweeters
  • Impedance: 8 Ohms
  • Amplifier: STMicroelectronics TDA7379
  • Rechargeable battery: Lead acid, 12V, 2.6Ah

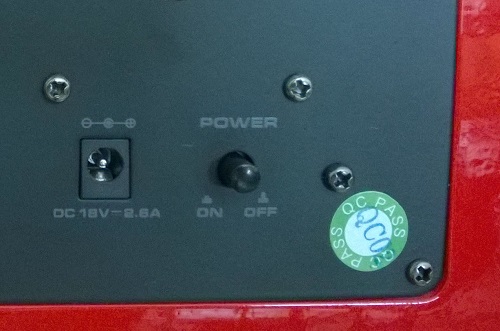

  • Mains power adapter: Input 100-240V, output 18V 2.6A
  • Max power consumption: 55W
  • Rated output power: 2x6W at 1% THD using the rechargeable battery, or 2x15W at 1% THD using mains power.
  • Maximum output power: 2x21W at 10% THD
  • Distortion: ≤0.1%
  • Noise: <5mV Master, <0.6mV Line Out
  • Crosstalk: >60dB between input channels
  • Frequency Response: 20Hz to 20kHz +1/-2dB
  • Input Sensitivity: Bluetooth -10dB +/-2dB, MIC -50dB +/-2dB, AUX -23dB +/-2dB
  • Max Input Voltage: MIC 75mV, AUX 1V
  • MP3 recording function: 48kHz, 8k~128kbps
  • Output sensitivity: Master 10dB +/-2dB, Line Out 6dB +/-2dB, Phones 250mV 32Ω

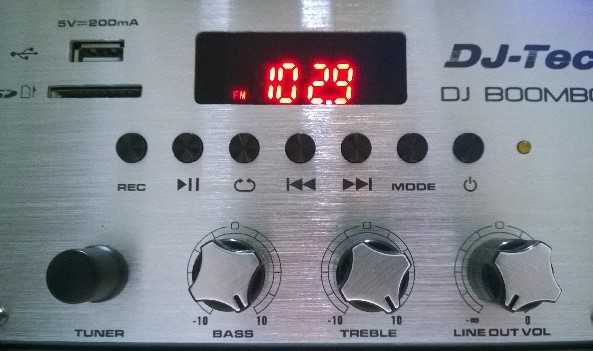

  • Treble control (10kHz): +11dB to -11dB +/-2dB
  • Bass control (100Hz): +10dB to -10dB +/-2dB
